Принтер простого экрана с вакуумной таблицей

S-2838PV Flat screen printing Machine with vacuum table//Parameters

• Max printing thickness: 260 mm;
• Air consumption: 80Litre/Min;
• Dimension of working table: 300×500mm;
• Max printing areas: 280×380mm;
• Max printing speed: 1200Pcs/H;
• Max frame dimension: 450×740mm;
• Compress air: 5-7 bar;
• Stroke of cylinder up and down:160mm;
• Stroke of Squeegee: 400mm

S-2838PV Flat screen printing Machine with vacuum table //Advantage

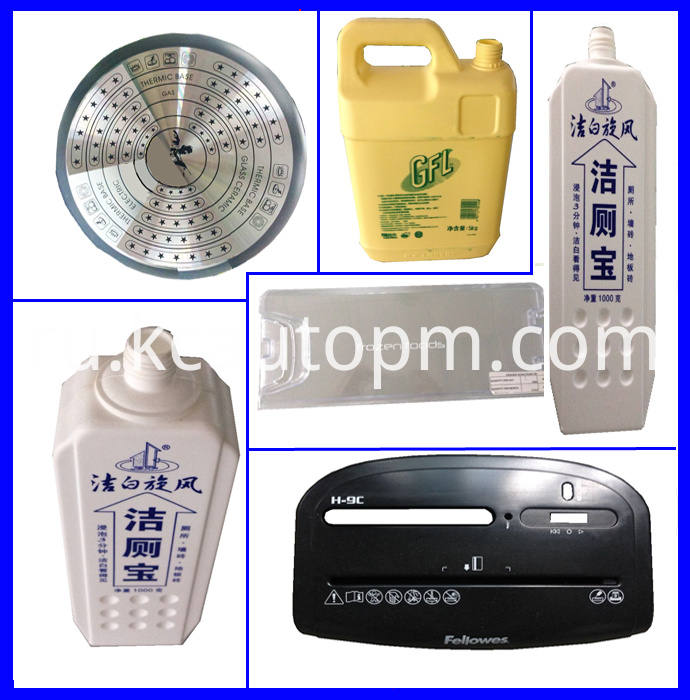

• Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
• Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
• Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
• Screen forme Clamping device free to adjust to fit different sizes of screen;
• Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
• Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
• Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
• Microcomputer program control operations;
• 4-Digit auto counter; to facilitate the measurement of production efficiency.
