Принтер запечатанной чашки для электронов

• With sealed cup to protect environment , VOC volatilization reduced 86% and save ink over 25%.
• With coin aluminum structure ensure more stabilization and long life.
• Independent cylinder to drive sealed cup ensure removing ink completely. Make min Pressure to remove ink and prolong the life of sealed cup and steel plate;
• Both thick steel plates and thin steel plates installed , Choose according to customer requirements.
• Can print almost small size objects . So sold very nice in the world.
• Widely used in the industry field of cosmetics case, electron parts, Toys, plastics production, Housewares, gifts, decorations.
• Completely printing solution including ink and thinner , fixtures, steel plates, rubber pads provided when you send us samples;

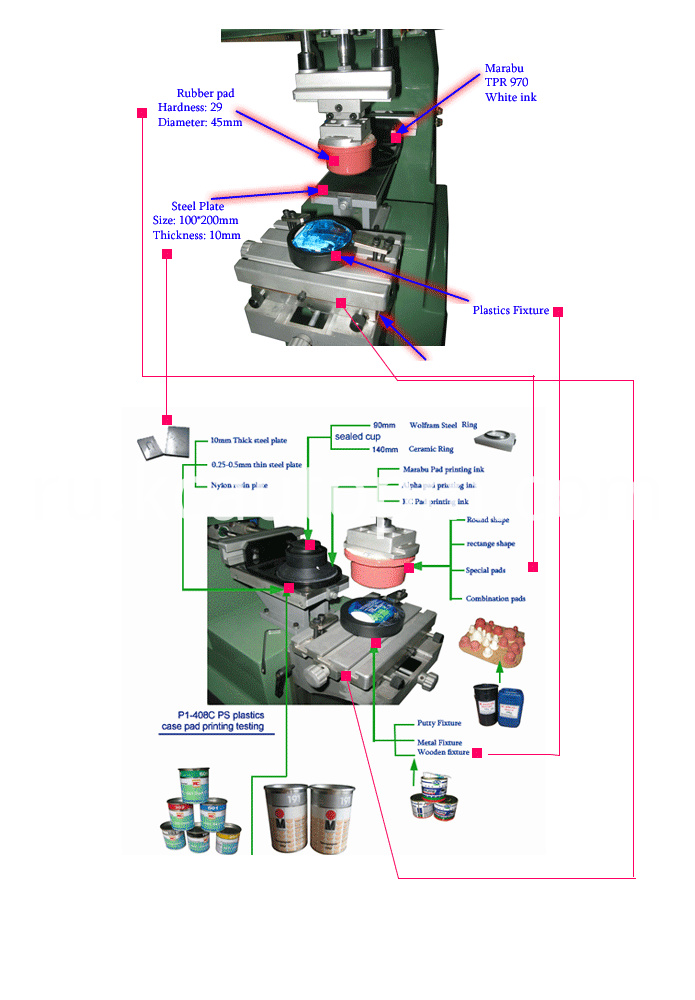

One color pad printer //Parameter

P1-408C

• Max. steel plate: 100 ×200 mm;
• Ink cup size: Ф90 mm;
• Max. printing area :80×80 mm ;
• Printable color quantity:1;
• Max. printing speed: 1300 pcs/h.

P1-410C

• Max. plate size: 100×250 mm;
• Ink cup diameter: Ф90 mm;
• Max. printing area: 80×130 mm;
• Max. printing speed: 1100 pcs/h;
• Printable color quantity:1;

P1-412C

• Max. plate size: 100×300 mm;
• Ink cup diameter: Ф90 mm;
• Max. printing area: 80×170 mm;
• Max. printing speed: 1000 pcs/h;
• Printable color quantity:1

One color pad printer //Advantage

• Using the dimensional modulating table, can be up and down, front, left, and rotation of the adjustment, which will help precise printing;
• T-slot structure, easy installation of fixtures and products;
• Hand pick and place workpiece, operating more handy;
• Microcomputer program control, the movement is more accurate and reliable;
• Test machine can be a single action adjustment, adjustment is completed, you can use the automatic mode of operation;
• Equipped with four counters, can effectively measure the number of products;
• Structure using die-casting aluminum, lightweight and solid.
• Independent Rubber pad up and down stroke and speed adjustment function;
• Sealed cup ink system, ink savings, and also to prevent the ink in the VOC emission into the air pollution of the environment, health protection of operating personnel;
• Sealed cup glide independent driving cylinder Blade pressure and Ink Removing Completely;
• Either use the tungsten steel ring, you can use a ceramic ring, and easy to replace;
• Temporary shutdown can prevent the ink to dry within the Sealed cup with INK function;
• World famous pneumatic components to ensure the long service life of machine;
• Rubber sliding shaft with hardened guide shaft grinding of high hardness, good abrasion resistance.
