Rotary CE одобрение 12 цветов

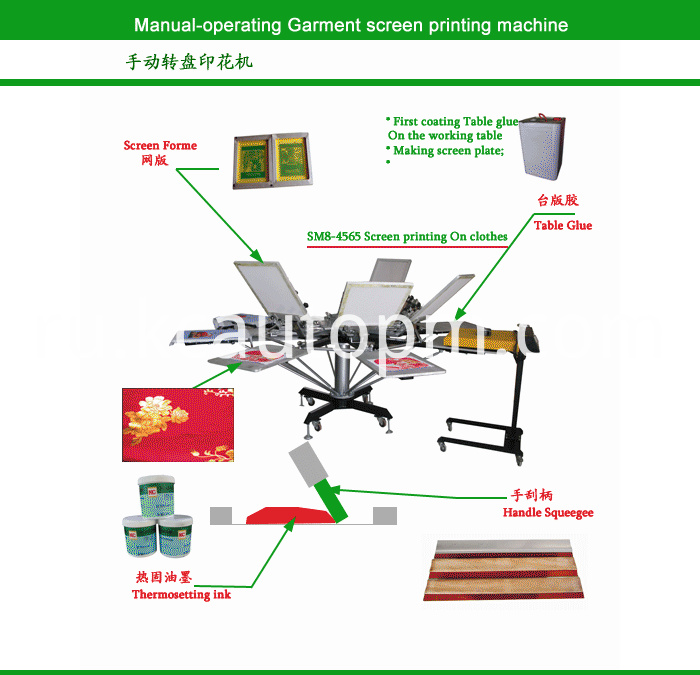

SM12-5050T 12-colour Manual-operating rotating flat screen printing machine

• Max printing thickness:0-20 MM;
• Net weight: 560KG;
• Max printing area:450X450mm
• Size of working table: 500×500mm;
• Max printing speed:500pcs/H.
• Printing number: 12;
• Drying mode: IR;
• Max height of screen frame: 40mm;
• Max size of screen frame: 550*680mm;
• Wattage of heater: 3.6KW.

SM12-4565 12-colour Manual-operating rotating flat screen printing machine

• Max printing thickness:0-20 MM;
• Net weight: 560KG;
• Max printing area:400X600mm
• Size of working table: 450×650mm;
• Max printing speed:500pcs/H.
• Printing number: 12;
• Drying mode: IR;
• Max height of screen frame: 40mm;
• Max size of screen frame: 550*680mm;
• Wattage of heater: 3.6KW.

SM12-5070 12-colour Manual-operating rotating flat screen printing machine

• Max printing thickness:0-20 MM;
• Net weight: 560KG;
• Max printing area:450X650mm;
• Size of working table: 500×700mm;
• Max printing speed:500Pcs/H.
• Printing number: 12;
• Drying mode: IR;
• Max height of screen frame: 40mm;
• Max size of screen frame: 550*680mm;
• Wattage of heater: 3.6KW

• Operated by hand, controllable is well;
• Total-steel rotating-axis system ensure whirling free and Adaptability.
• High-strength support pole make the machine structure rigidity.
• Six-color screen printing one time, overprint is precision .
• Screen frame can be adjustable according to different objects to be printed.
• Screen frame can be rise up after printing so that printing quality.
• High-stabilization working table ensure non-shaking when printing
• IR Dryer with machine make the clothes drying fast
