- Gilding - paper, leather, wood, plastic,
- Baked - wood products, baked painting, gift box packaging;
- Embossing - paper, leather, cloth.
- Flat-object stamping machine with large-pressure, Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Plastics film, Electron products;
- Manual. Automatic feed foil, automatic temperature controlling ensures stamping quality.
- Because of large pressure, It is suitable for gilding and baking Impression on leather, paper, wooden materials.
- Pneumatic drive, pressure large.
|

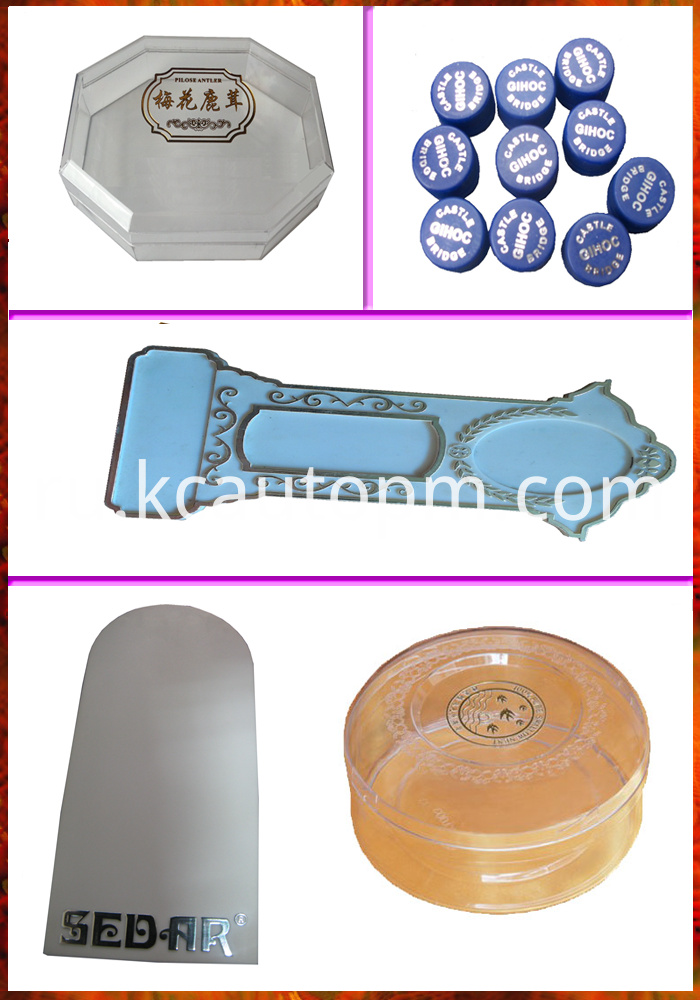

Application fields
|
- Paper Gilding, Leather Impression, Wood ware Baking
- Paper Concave-convex embossing, Cloth hot stamping,
- Plastics Bronzing
- Mobile screen, Household appliances Panel , Thick paper card, PVC board Etc. large dimension Flat substrate stamping and Bronzing.
- Woodiness objects baking-burns and Impress;
- Leather bronzing and Molding;
- Paper products concavo indentation.
- Graduated disc of clock bronzing.
|
Pneumatic hot stamping Machine //Parameter
|
|
H-TC1015R4R
- Hot plate area:100× 150 mm
- Working table area: R500mm
- Max printing pressure:1,000-1500 Kg
- Up and down distance:100mm
- Heat wattage:2500W
- Foil in feed: Motor Drive
- Temperature adjustment:0-300oC .
|
H-TC1927R4R
- Hot plate area:190 × 270 mm
- Working table area: R500mm
- Max printing pressure:1000-1500 Kg
- Up and down distance:100mm
- Heat wattage:2500W
- Foil in feed: Motor Drive
- Temperature adjustment:0-300oC
|
Pneumatic hot stamping machine with servo working table //Advantage
|
- Table can be pulled into and pulled out the pick and place of convenience products;
- Table can be up and down, around, before and after the precision adjustment, to facilitate the adjustment of the precise location of the gilt;
- Table lifting screw adjustment, simple and convenient;
- Relays for process control, stable operation, easy maintenance;
- The use of advanced temperature control system, the temperature can be set freely, high precision temperature control, with automatic temperature control;
- leveraged cylinder pressure, the pressure is uniform and strong;
- The basic parameters of the hot stamping process; temperature, pressure, hot pressure, the rolls of time in accordance with the process requirements of the flexible adjustment;
- Motor to control the delivery of the gold foil paper, resin length can be flexibly adjusted according to the size of the stamping area;
- Using high strength steel, gilt plate and table, has a very high flatness;
- Heating tube for heating, heat supply is stable, easy to replace
|
